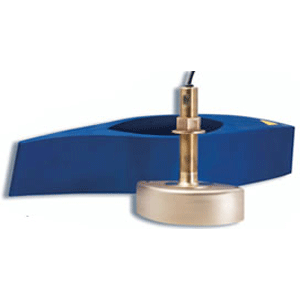

Cat. No. RM25524   Mfgr. No. E66079   Price   $1,289.99
Cat. No. RM28202   Mfgr. No. A66089   Price   $999.99
Cat. No. RM25525   Mfgr. No. E66082   Price   $756.99

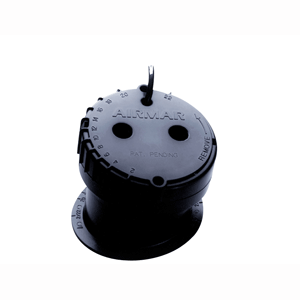

Cat. No. RM13902   Mfgr. No. E66008   Price   $178.99
Cat. No. RM31921   Mfgr. No. A66091   Price   $411.99
Transducers and Accessories
Hull material: fiberglass;  Max Power: 600 W;  Frequency:
200/50 kHz;  Beam Angles: 200 kHz 11 50 kHz 45
Features:
  • Depth only.
  • Can be used in conjunction with the E66019 ST69
    speed and temperature sensor
  • Easily adjusts to any deadrise angle up to 22
  • Transmits sound waves directly at the bottom so
    strong echoes are reflected back to the transducer
  • Only the base piece is bonded to the hull. There is
    no adhesive layer under the transducer face to
    absorb sound energy
  • 30ft (10m) Cable
- hsb2 HDFI Series: DSM250, L770D, L770DRC,
L1260D, and L1260DRC
Features:
  • Compatible hull material: wood and fiberglass
  • Max Power: 1000 W
  • Frequency: 200/50 kHz
  • Beam Angles: 200 kHz 15° x 21° 50 kHz 3° x 5°
    (Elipitical beam measured fore-to-aft and port-to-
    starboard)
  • Cable: 30ft (10m) cable with connector
Features:
  • Depth
  • 50/200 kHz
  • 1 kW RMS
  • High-performance
  • Urethane

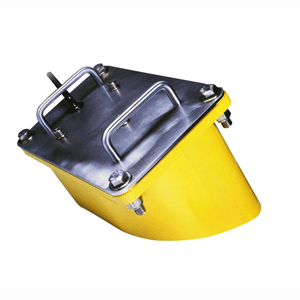

Raymarine 1kW In-hull w/Mounting Tank (M260)
- DSM250 and DSM300
- SL Series: SL755RC, SL760RC , SL1250, and
SL1250RC
- hsb2 Plus Series: L755RC, L760, L760RC, L1250,and
L1250RC
- hsb2 HDFI Series: DSM250, L770D, L770DRC, L1260D,
and L1260DRC
Compatible hull material: wood and fiberglass
Max Power: 1000 W
Frequency: 200/50 kHz
Beam Angles: 200 kHz 6° 50 kHz 19°
Cable: 30ft (10m) cable with connector
Bronze Broadband Ultra-High Perf. T/H w/Fairing (B260)
  • Frequency: 200/50 kHz
  • Cable: 30ft (10m) cable with connector
  • Hole diameter for installation: 2"
  • Other: Self-sealing removable paddle wheel insert.
  • Includes high speed fairing block.
Bronze thru hull Tri-Ducer (B744V)  w/Fairing Block
____________________________________________________________________________________________________________________________________________
_____________________________________________________________________________________________________________________________________________
____________________________________________________________________________________________________________________________________________
•DSM25
•A50D
•A57D
•A70D
Compatible hull material: aluminum, wood, and
fiberglass;  Frequency: 200/50 kHz;  Cable: 25ft
cable
Cat. No. RM34231   Mfgr. No. A102138    Price   $104.99

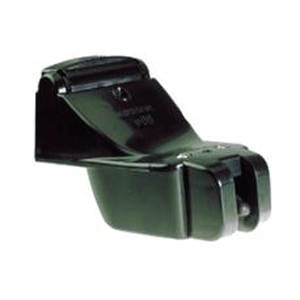

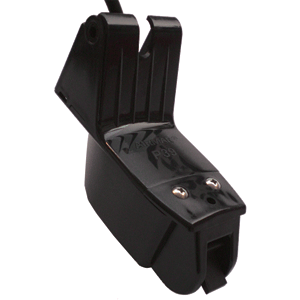

Transom Mount Transducer for DS400/500/600 A65 A60 (P58)
____________________________________________________________________________________________________________________________________________
___________________________________________________________________________________________________________________________________________
Cat. No. RM32971   Mfgr. No. E66073    Price   $116.99

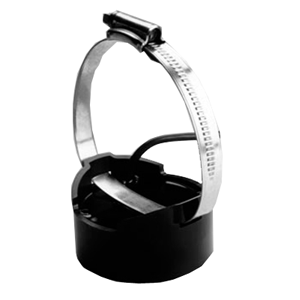

Raymarine Trolling Motor Transducer - Depth & Temp (P74)
Compatible with the following sounders:
  • DSM25
  • A50D
  • A57D
  • A70D
Compatible hull material: Fiberglass;
Frequency: 50/200 kHz;  500W;  Cable: 25 ft.
Cat. No. RM51481  Mfgr. No. A22154    Price  $209.99

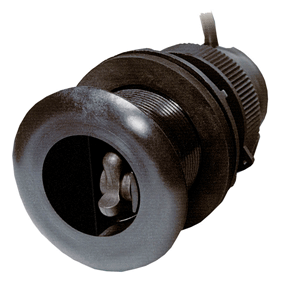

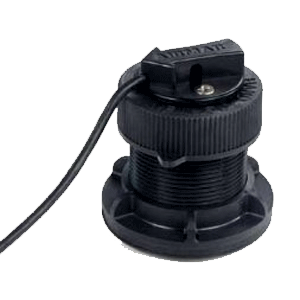

Raymarine DST800 Nylon Thru Hull Xducer Depth, Temp, Speed
Raymarine DST800 Nylon Thru Hull Transducer with
Depth, Speed, and Temp for ST60, ITC-5, I50
___________________________________________________________________________________________________________________________________________
Cat. No. RM14085  Mfgr. No. M78717    Price   $178.99

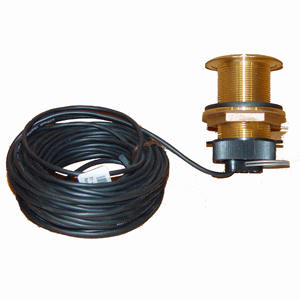

Raymarine M78717 Retractable Transducer (B17)
•ST60+
•ST290
Compatible hull material: fiberglass and wood;  Cable:
45 ft cable;  Hole diameter for installation: 2"
Cat. No. RM27206   Mfgr. No. E66010    Price   $99.99

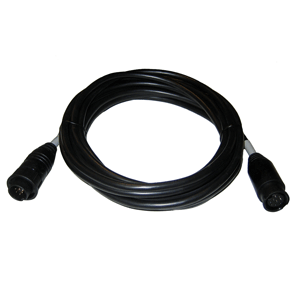

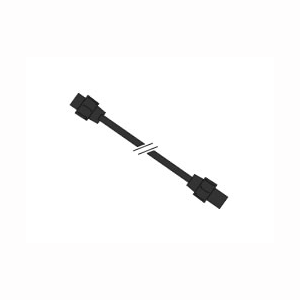

Raymarine Transducer Extension Cable (5m)
Transducer Extension Cable, 5 meter
Adds 5 meters of length to the stock transducer
cable.
Works with the L755, L760, L770, L1250, L1260,
and DSM compatible systems.
Cat. No. RM46518  Mfgr. No. A80013     Price   $1,299.99

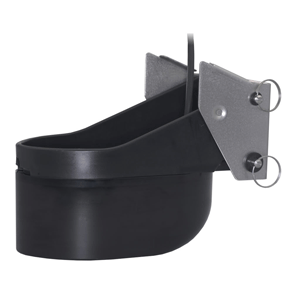

Raymarine TM265LH Transom Mount 1kw Chirp Transducer
____________________________________________________________________________________________________________________________________________

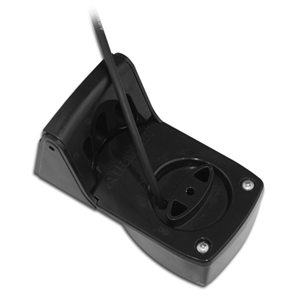

Cat. No. RM42392  Mfgr. No. A102140    Price   $68.99
The ultra-wide 38 degree beam will mark more fish, giving you that
tournament winning edge. The P48's innovative design allows you to
change the transducer beam direction on the fly based on specific
fishing conditions.
Features:
  • Adjustable Beam
  • Depth & Temperature
  • 200 kHz Only
  • 100 W RMS
  • Mid-Performance
  • Plastic
Cat. No. RM15231    Mfgr. No. E66023     Price   $84.99
Cat. No. RM33142    Mfgr. No. A66090     Price   $410.99
A66090 Bronze TH Xducer w/Depth, Speed &
Temp w/Hi-Speed Fairing Block
Bronze TH Xducer w/Depth, Speed & Temp w/Hi-Speed Fairing Block
Raymarine E66023 Fairing Block for B744V

Raymarine E66023 Fairing Block f/ B744V
____________________________________________________________________________________________________________________________________________
Cat. No. RM47529  Mfgr. No. A80172    Price  $679.99

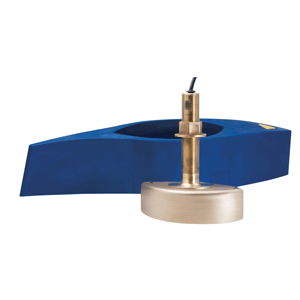

Raymarine B258 Bronze Thru-Hull 1kW f/A,C,E Series
four-ceramic-element construction puts out a narrow
beam for good deep-water capability with very good
target and bottom definition. For the best possible
results, Airmar recommends coupling it with a
High-Performance Fairing.
Features: Depth & Temperature, 50/200 kHz, 1 kW RMS
High-Performance, Bronz.e
Cat. No. RM31297    Mfgr. No. B164-12-RAY    Price  $940.99
  • 50/200 kHz
  • 1 kW RMS
  • Bronze
Step up to a 1kW Without a Fairing! Airmar has taken our innovative
Tilted Element™ technology to a higher power. The new 1kW, flush-
mount, tilted element transducers are perfect for fast, trailered
tournament sport fishing vessels who cannot have a high-
performance fairing. The flush mounted, bronze housing protrudes
less than 6.35 mm (0.25) outside your hull and can sit on trailer
rollers and bunks with no damage at all. The ceramic arrays are
tilted inside the housing giving you the perfect vertical beam with
maximum energy on what is directly below your boat. Take your
fishfinder to the next power with Airmars 1kW tilted element
transducers.
Cat. No. RM31298    Mfgr. No. B164-20-RAY    Price  $940.99
For use with Raymarine DSM250 or DSM300 sounder modules
Features:
  • Depth/Temp
  • 50/200 kHz
  • 1 kW RMS
  • High-performance
  • Bronze
The new 1kW, flush-mount, tilted element transducers are perfect for
fast, trailered tournament sport fishing vessels who cannot have a high-
performance fairing. The flush mounted, bronze housing protrudes less
than 6.35 mm (0.25) outside your hull and can sit on trailer rollers and
bunks with no damage at all. The ceramic arrays are tilted inside the
housing giving you the perfect vertical beam with maximum energy on
what is directly below your boat. Take your fishfinder to the next power
with Airmars 1kW tilted element transducers.
____________________________________________________________________________________________________________________________________________

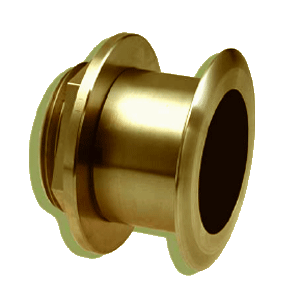

Raymarine 1kW 20° Tilted Element Transducer  (B164-20)
Cat. No. RM32022  Mfgr. No. A66092   Price   $569.99
Long stem for hulls with steep deadrise or thicker cored
hulls.
Compatible with the following sounder modules:
  • DSM30
  • DSM300
Compatible hull material: Wood and fiberglass
Max power: 600 watts
Frequency: 200/50 kHz
Cable: 30ft (10m) cable with connector;  Hole diameter
for installation: 2";  Other: Self-sealing removable
paddle wheel insert.
High speed fairing block is included.

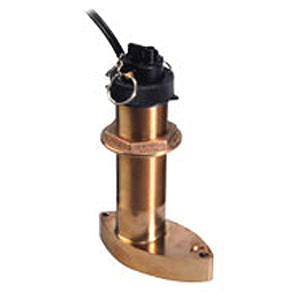

Long Stem Bronze Thru hull Tri-ducer w/Fairing Block (B744VL)
Cat. No. RM34516  Mfgr. No. A26043   Price   $407.99
  • ST60+
Compatible hull material: Wood and Fiberglass
Frequency: 200 kHz;  Cable: 45ft cable;  Hole
diameter for installation: 2";  Note: E66023
Fairing block sold separately.

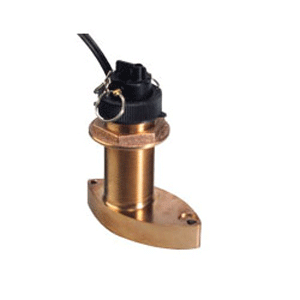

Bronze Thru Hull Triducer with 45' cable (B744V)
____________________________________________________________________________________________________________________________________________
____________________________________________________________________________________________________________________________________________
Cat. No. RM15371  Mfgr. No. E66014   Price   $283.99

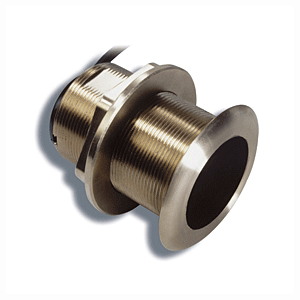

Raymarine Low Profile Bronze Depth Only Xducer (B117)
  • DSM250 and DSM300
  • SL Series: SL755RC, SL760RC , SL1250, and SL1250RC
  • hsb2 Plus Series: L755RC, L760, L760RC, L1250,and
    L1250RC
Compatible hull material: wood and fiberglass
Max Power: 600 W;  Frequency: 200/50 kHz;  Cable: 30ft (10m)
cable with connector
Cat. No. RM26249  Mfgr. No. E66013   Price   $187.99

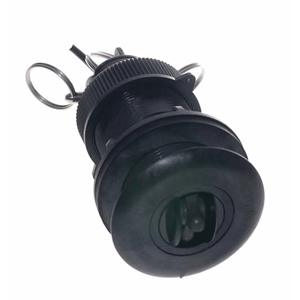

Raymarine Low Profile Plastic Depth Only Xducer (B319)
Depth only low profile transducer (P319)
Compatible with the following Echo Sounders:
  • DSM250 and DSM300 and DSM30
  • SL Series: SL755RC, SL760RC , SL1250, and SL1250RC
  • hsb2 Plus Series: L755RC, L760, L760RC, L1250,and
    L1250RC
  • hsb2 HDFI Series: DSM250, L770D, L770DRC, L1260D,
    and L1260DRC
Compatible hull material: wood and fiberglass
Max Power: 600 W;  Frequency: 200/50 kHz;  Cable: 30ft (10m)
cable with connector
___________________________________________________________________________________________________________________________________________
Cat. No. RM11341  Mfgr. No. E66074   Price   $85.99

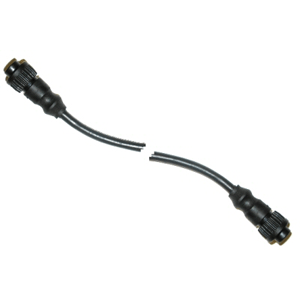

Raymarine Transducer Extension Cable, 3m
Transducer extension cable for DS400x, DS500x, DS600x and
DSM25 (A65) fishfinders.

3 meter extension cable extends the length of your stock transducer
cable for extra-long runs on larger vessels. Plug-together
connections for fast and easy installation. Note: For optimum
performance Raymarine recommends adding no more than 3
extension cables to any given transducer cable.
____________________________________________________________________________________________________________________________________________
Cat. No. RM26217  Mfgr. No. E66070   Price   $35.99

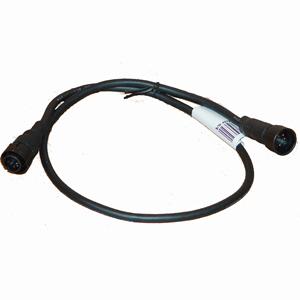

Raymarine Transducer Adapter Cable
Transducer Adapter Cable

speed, and temperature functions.
NOTE:  There is a 10% re-stocking charge for cancelled or returned merchandise
Cat. No. RM10406  Mfgr. No. E25025   Price   $120.99
Raymarine E25025 Thru-Hull Speed Transducer

Raymarine E25025 Thru-Hull Speed Transducer
Cat. No. RM13169  Mfgr. No. M78713-PZ    Price   $93.99
Raymarine M78713PZ Lexan Depth Transducer

Raymarine M78713PZ Lexan Depth Transducer for
ST60/ST290
Cat. No. RM14086  Mfgr. No. M78716    Price   $160.99
Raymarine M78716 Bronze Speed Transducer
  • ST70*
  • ST60+
  • ST290
Compatible hull material: Wood and fiberglass;  Cable: 45
ft. cable;  Hole diameter for installation: 2"
_____________________________________________________________________________________________________________________________________________
Cat. No. RM13168  Mfgr. No. E26031    Price   $69.99
Raymarine E26031 Retractable Lexan Speed/Temp Sensor
  • ST290
Compatible hull material: Aluminum and fiberglass;  Cable:
45 ft. cable;  Hole diameter for installation: 2"
Cat. No. RM15502  Mfgr. No. E26030    Price   $99.99

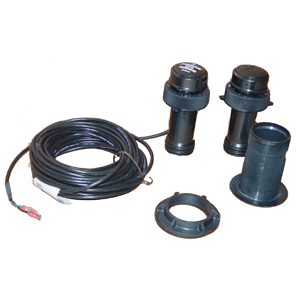

Raymarine E26030 Thru-Hull Depth Transducer - Retractable
Compatible with the following instruments:
  • ST70*
  • ST60+
  • ST290
Compatible hull material: Aluminum and fiberglass;
Cable: 45 ft. cable;  Hole diameter for installation: 2"
____________________________________________________________________________________________________________________________________________

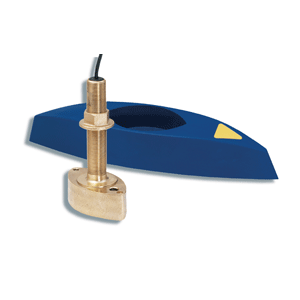

Cat. No. RM13498  Mfgr. No. E26019-PZ    Price   $222.99
Raymarine B45 Bronze Thru-Hull w/ Fairing Block
Compatible hull material: wood and fiberglass;  Cable:
45 ft. cable;  Hole diamater for installation: 7/8";
Includes fairing block.
Cat. No. RM17037  Mfgr. No. E26001-PZ    Price   $178.99

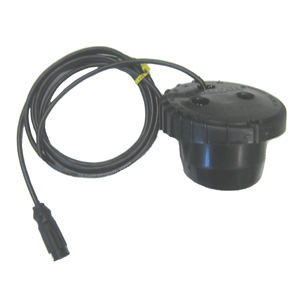

Our P79 in-hull transducer easily adjusts to hull deadrise
angles up to 22°. This ensures that the beam is vertically
oriented to receive echos resulting in accurate depth
readings. Unlike traditional "puck" type transducers, our P79
consists of a base that is bonded to the hull and filled with
liquid. The separate transducer then attaches to the base
with a twist lock. The sound waves travel more efficiently
though the liquid, giving the best possible performance.
Features:
  • 50/200 kHz
  • 600w RMS
  • Mid-performance
  • Plastic
Raymarine P79, 600w In-hull for ST60
_____________________________________________________________________________________________________________________________________________
Cat. No. RM25049  Mfgr. No. E26009    Price   $89.99
Raymarine Nylon Depth Thru-Hull for ST40

Compatible hull material: Aluminum and fiberglass

Cable: 30ft (10m) Cable;  Hole Diameter for installation:
2";  Depth Only
Cat. No. RM25050  Mfgr. No. E26008      Price   $99.99
Raymarine ST300, Thru-hull Shorty™
shortest thru-hull speed sensors. As part of our Shorty™
plastic P371 low profile outer housing option is nearly flush
and minimizes drag with only 5 mm (3/16") extending
housing option mounts flush, eliminating turbulence for
more accurate speed readings.
_____________________________________________________________________________________________________________________________________________
Cat. No. RM26250  Mfgr. No. B60-20-RAY  Price   $299.99
Raymarine B60-20, 20 Deg. Tilted Element Xducer - E Series
Features:
  • Depth/Temp
  • 50/200 kHz
  • 600w RMS
  • Mid-performance
  • Bronze
Cat. No. RM26251  Mfgr. No. B60-12-RAY  Price   $299.99
Raymarine B60-12, 12 Deg. Tilted Element Xducer - E Series
Features:
  • Depth/Temp
  • 50/200 kHz
  • 600w RMS
  • Mid-performance
  • Bronze
Cat. No. RM28320  Mfgr. No. B60-12-A  Price   $299.99
compensation. The resulting vertical beam provides
readings. The nearly flush housing minimizes
  • Depth/Temp
  • 50/200 kHz
  • 600w RMS
  • Mid-performance
_____________________________________________________________________________________________________________________________________________
Cat. No. RM33225  Mfgr. No. E26028-PZ   Price   $174.99
Raymarine Transom Mount Triducer  w/ 10m Cable
  • ST60+ Instruments
  • ST70 Instruments*
Compatible hull material: metal, wood and fiberglass;
Cable: 30ft (10m) Cable;  Depth, Speed & Temperature
_____________________________________________________________________________________________________________________________________________
Cat. No. RM33378  Mfgr. No. B164-0-RAY   Price   $940.99
Raymarine 1kW 0° Tilted Element Transducer
Step up to a 1kW Without a Fairing! Airmar has taken our
innovative Tilted Element™ technology to a higher power. The
new 1kW, flush-mount, tilted element transducers are perfect for
fast, trailered tournament sport fishing vessels who cannot have
a high-performance fairing. The flush ceramic arrays are tilted
inside the housing giving you the perfect vertical beam with
fishfinder to the next power with Airmars 1kW tilted element
Features:
  • Depth/Temp
  • 50/200 kHz
  • 1 kW RMS
  • High-performance
  • Bronze
Cat. No. RM35254   Mfgr. No. E26027-PZ   Price   $119.99
Raymarine P66 Transom Mount Depth Transducer
  • ST40 Instruments
Compatible hull material: metal, wood, and fiberglass

Cable: 30ft (10m)
Depth Only
IMPORTANT NOTE FOR ORDERS FROM OUTSIDE OF THE U.S.:   Shipping charges for orders outside of the Continental U.S. will be billed separately.  International
shipping is based on weight, size and destination country and are shipped via USPS Priority International Mail, unless requested otherwise or is prohibited by size or
weight.
Raymarine B60-12, 12 Degree Tilted Element - A Series
RAYMARINE B258 1kw Bronze/TH w/Fairing Block
RAYMARINE Adjustable In-hull Puck 79
Raymarine P48 Wide Fan Beam TM w/25' Cable
Raymarine 1kW 12° Tilted Element Transducer  (B164-12)
Transom Mount TM265LH 1kw Chirp Transducer for CP450C
Features:
  • Depth/Temp
  • Transom Mount
  • Urethane
  • CP450C Plug on Cable
  • Frequency: L=42-65 kHz, H=130-210 kHz
  • Power 1kW
Transducers for Wireless (TackTic) Instruments
Cat. No. RM38319       Mfgr. No. T911        Price   $171.99
These transducers have been included as standard with mn100
T100 Speed and Depth systems since August 2004. Prior to this
the T100 was supplied with the T904 Shorty Speed Transducer.
Supplied with 6 meters of cable.
Features:
  • Max. Hull thickness 2.125" (55mm)
  • Fitted with a flap valve
  • Includes temperature sensor
  • 2" diameter
  • For Hull thickness up to 2.125" maximum
  • Fitted with a flap valve to reduce water ingress when
    removed for cleaning
  • Supplied with a low profile housing and blanking plug
  • Includes internal temperature sensor
Speed Tranducer - Long Body Thru-Hull Retractable
Cat. No. RM38320       Mfgr. No. T912        Price   $169.99
mn100 T100 Speed and Depth systems since August 2004.
Prior to this the T100 was supplied with the T905 Shorty
Depth Transducer. Supplied with 6 meters of cable.

Features:
  • 2" (51mm) diameter
  • Max. Hull thickness 2.125" (55mm)
  • Removeable for cleaning
  • Retractable Thru Hull Depth Transducer
Raymarine Depth Transducer
_____________________________________________________________________________________________________________________________________________
Cat. No. RM38321       Mfgr. No. T914        Price   $607.99
Retractable Through Hull Active Depth Transducer. This
Interface for use in systems whre boat speed is available
from a GPS. Operates at 235kHz.
Features:
  • 2" diameter (51mm)
  • Max. Hull thickness 2.125" (55mm)
  • Removeable for cleaning
  • Easy connection to T122 interface
  • Right angle cable exit
Active Depth/Temperature Thru Hull Transducer
Cat. No. RM38322       Mfgr. No. T915        Price   $213.99
Transom mount Triducer multisensor for speed, depth and
features a rounded nose which reduces the turbulance
under the transducer's face for accurate high speed
readings.
Features:
  • New square blade paddle-wheel improves linearity
    and is more accurate through the speed range
  • With adjustable tension bracket which kicks up on
    impact to protect the housing
  • Recessed waterflow channel protects paddle-wheel
Transom Mount Transducer w/Depth Speed Temp
_____________________________________________________________________________________________________________________________________________
Cat. No. RM38323       Mfgr. No. T910        Price   $321.99
Combined Speed/Temperature and Depth Transducer for
use with the mn100 Micronet system. Supplied with thru hull
housing and blanking plug and 6 meters of cable.

Features:
  • Requires only one hole in the hull
  • Standard 51mm (2") hole size
  • Internal Temperature Sensor
Nylon Thru Hull w/Depth Temperature Speed
Cat. No. RM44780       Mfgr. No. A80010     Price   $1,369.99
B265LH 1kW Thru Hull Transducer

Features:

  • Bronze
  • 1kW
  • Temperature Included
B265LH 1kW Bronze Thru Hull w/Temp
_____________________________________________________________________________________________________________________________________________
P319 Low Profile Through Hull Transducer
Features:
  • Compatible hull material: fiberglass or metal
  • Depth/ Temperature
  • Max Power: 500W RMS (depending on connected SONAR)
  • Frequency: 200/50 kHz
  • Cable Length = 9.1M/30'
  • Hole diameter for installation: 2"
P319 Low Profile Thru-Hull Depth Transducer
The B765LH transducer is a bronze, thru-hull depth and
temperature sensor compatible with Raymarine's CP450C
ClearPulse CHIRP sonar. It features a depth and
fast-response water temperature sensor in a bronze housing
with high-performance fairing.

The B765LH is intended for boats 30-feet in length or
longer, with fiberglass or wood hulls.
Raymarine B765LH Bronze Thru Hull for CP450C
_____________________________________________________________________________________________________________________________________________
Cat. No. RM53412    Mfgr. No. A80305        Price   $29.99
Raymarine CPT-200 Transducer Extension Cable, 4M
CPT-200 Transducer Extensions Cable
- 4M

Features:
Transducer Extension Cable
Length: 4M
Cat. No. RM56519   Mfgr. No. A22111        Price   $304.99
Raymarine DST800 Depth & Temp Plastic Thru Hull Transducer
  • Depth, speed and temperature transducer
  • Compatible hull material: aluminium and
    fiberglass
  • Hole diameter for installation: 2"
Operates at 235kHz so there is no interference with
your 50/200 kHz fishfinder transducer. Airmar's
Smart™ Sensors have embedded microelectronics,
meaning the signal is processed from within the
transducer itself, eliminating the need for an ST70
transducer pod or ITC-5.
