VHF Marine Radios & Loudhailers
RAY 218 DSC  VHF RADIO w/hailer
DSC:                        Yes
Weather Alert:         Yes
Remote Mic:             Optional
Scrambler:               No
Hailer/Intercom:        Yes
Waterproof Rating:  Submersible
Product Dims:          3.9x7.8x6.0
Warranty:                 3 Years
  • Built-in 30 Watt Hailer with "Listen Back" capability and
    automatic fog horn
  • NMEA 0183 input with GPS Position, COG and SOG display
  • Chartplotter position polling using NMEA 0183 output
  • Extra large dot matrix LCD
  • Speaker microphone with controls and remote mount option
  • Optional Raymic remote station handset serves as full function
    second station (SEE BELOW)
RAY 218 Radio       Cat. No. RM30441    Mfgr. No. E43032       LIST  $599.00

Flush Mount Kit for Ray 218      Cat. No. RM30663    Mfgr. No. A46060       Cost   $28.99
__________________________________________________________________________________
_________________________________________________________________________________
RayMic REMOTE STATION HANDSET FOR RAY218/55
  • Full access to all of your Ray218's features and functions.
  • Extra large dot matrix LCD
  • Speaker microphone equipped
  • Dual Channel Display (2UP Mode) displays active channel and stand by channel
    simultaneously
  • Programmable favorite channel soft keys (1UP Mode)
  • Quick Access 16/9 Key
  • Submersible (IPX7 Standard)
  • Raymic enables full duplex intercom capabilities between Ray218 and Raymic at
    a remote station.
upgrade the Raymic features
favorite channel soft keys.a
large backlit LCD status
display and controls display
and controls including a
quick access 16 key,
volume, squelch and
favorite channel soft keys.
RayMic     Cat. No. RM30664   Mfgr. No. A46051     OUR PRICE  $149.99
__________________________________________________________________________________
Raymarine 40w Horn, 5"x8" Speaker
C
at. No. RM11607    Mfgr. No. M95435
OUR PRICE  $190.99
Some listed prices are manufacturer's list prices.  To see Waypoint's discount, click on the "Our Price" button.
If you don't see what you're looking for, please call or email us for pricing
847-373-1841
______________________________________________________________
_____________________________________________________________
_____________________________________________________________
847-373-1841
Multifunction Displays          GPS Plotters & Fishfinders          SmartPilot Systems          VHF Radios & Hailers          Instruments         Satellite Weather & TV, AIS
Radar          Transducers & Access.          SeaTalk, NMEA & HSB2 Cables

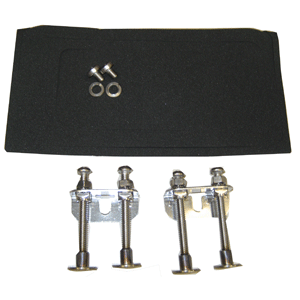

Ray Rear Mounting Flush Mount Kit for
Ray49/55/218
Cat. No. RM31994  Mfgr. No. A46053
OUR PRICE  $27.99
(See optional external
speakers below)
Raymarine Ray260 VHF Radio
_______________________________________________________________________________
Raymarine's premium Ray260 VHF radio packs top-of-the-line communications features into a compact, modular design
that works with small and large vessels alike. It includes a full-featured 25 watt VHF radio with Class D Digital Selective
Calling (DSC), a full-featured loudhailer/foghorn and an internal multi-station intercom.

  • Slimline handset with an extra-large LCD display and dedicated soft keys for easy control of features and
    functions.
  • The powerful, remote-mounted speaker with adjustable volume control ensures you hear everything loud and
    clear. Ray260 can support 2 additional handset/speaker locations giving you complete control from up to 3
    locations onboard
  • Ray260's new Digital Voicemail feature allows you to pre-record a voice message up to 15-seconds and
    automatically send it to another DSC-equipped vessel. You can also use it to record incoming voice messages or
    alerts up to 90-seconds long.
  • Ray260's convenient position tracking feature allows you to simultaneously receive position reports from up to 5
    nearby DSC equipped vessels. Their positions are automatically fed over SeaTalkng for display right on your
    MFD's chart display. This feature is perfect for keeping tabs of other boats in your cruising party, monitoring
    vessels of interest, or for local fleet management. For European inland waterways, the Ray260 also includes
    standard ATIS capability.
  • Ray260's built-in loudhailer will make you heard on deck and across the harbor. The hailer packs a punch with 30-
    watt output and 2-way talkback too so you can easily communicate with your on-deck crew in noisy conditions. The
    hailer also includes an automatic foghorn with built-in signals for both power and sailing vessels.
Ray260 easily integrates with other NMEA2000 (via Raymarine STng cabling system) or NMEA0183 onboard electronic
systems.
Ray260    Cat. No. RM48323   Mfgr. No. E70087    LIST PRICE  $709.99
Raymarine Ray260 VHF Radio with Built-in AIS Receiver
Handset:
Slimline handset with an extra-large LCD display and dedicated soft keys for easy control of features and
functions (see details above).

Powerful Speaker:
The powerful, remote-mounted speaker with adjustable volume control ensures you hear everything loud and
clear. Ray260 can support 2 additional handset/speaker locations giving you complete control from up to 3
locations onboard

The Ray260 handset and speaker are the perfect match to Raymarine's latest generation multifunction displays
and instrument systems and easily integrates with other NMEA2000 (via Raymarine STng cabling system) or
NMEA0183 onboard electronic systems..

Transceiver Module:
Engineered to be your onboard communications hub, the Ray260 has a powerful 25-watt/1-watt, commercial
grade transceiver with Class D Digital Selective Calling. It also has built-in NOAA weather channels and weather
alert, plus convenient dual-watch, tri-watch, and channel scanning features.

Choose the Ray260AIS model and you'll also get a built-in dual-channel Automatic Identification System (AIS)
receiver. When connected to your compatible multifunction display, radar, chart plotter or instruments, the AIS
system allows you to see the names and positions of other AIS users within radio-range of your vessel, right on
your chart, radar or instrument display.
Ray260 w/AIS   Cat. No. RM48324   Mfgr. No. E70088    LIST PRICE  $999.99
_______________________________________________________________________________
Raymarine Ray260 Expansion Handset with 10m Cable
Slimline handset with an extra-large LCD display and dedicated soft keys for easy control of features and
functions.  Can be added to a dual-helm system or as an additional unit for a nav station onboard.

The Ray260 handset is a perfect match to Raymarine's latest generation multifunction displays and
instrument systems and easily integrates with other NMEA2000 (via Raymarine STng cabling system) or
NMEA0183 onboard electronic systems..
Ray260 Exp.. Handset   Cat. No. RM48325   Mfgr. No. A80196    LIST PRICE  $209.99
IMPORTANT NOTE FOR ORDERS FROM OUTSIDE OF THE U.S.:   Shipping charges for orders outside of the Continental U.S. will be billed separately.
International shipping is based on weight, size and destination country and are shipped via USPS Priority International Mail, unless requested otherwise or is
prohibited by size or weight.
_______________________________________________________________________________
_______________________________________________________________________________
_______________________________________________________________________________
_______________________________________________________________________________
_______________________________________________________________________________
Raymarine Ray50 VHF Radio
Compact VHF to mount just about anywhere!
The Ray50 VHF packs a powerful communication system into a case that is small enough to mount just about anywhere. With 25W
of power, Class D Digital Selective Calling, and simple integration with other onboard electronics, the Ray50 is the perfect
solution when space is at a premium.

Full of Features, Ultra-Compact Dimensions
The Ray50 features a large display with easy-to-read digits and icons that are visible day or night. The Ray50 features both a
noise-cancelling microphone as well as a premium quality speaker. The Ray50 is equipped with Class D Digital Selective Calling
(DSC) with simple to use controls and an intuitive menu system. You'll be a Ray50 expert in no time!
The Ray50 features standard NMEA2000 and NMEA0183 networking for simple connection to onboard systems and it integrates
seamlessly with Raymarine LightHouse II Multifunction Displays for advanced DSC functions. The Ray50 offers flexible mounting
too. Use the included trunnion bracket to attach the radio to any console, bulkhead or overhead. The radio can also be
flush-mounted using its convenient front-mount attachment points. The Ray50 boasts a wide array of standard features including
NOAA weather alert, dual-watch, tri-watch, scanning, selective scanning, and much more.
Features:
  • Compact, space-saving design saves space on
    crowded helms
  • No compromises; full power transmitter and
    robust VHF features
  • Full-sized controls and LCD are easy to see and
    operate
  • Sleek, black bezel looks great with Raymarine
    MFDs and Glass Bridge displays
  • Standard NMEA2000 and NMEA0183 networking
    for simple connection to onboard systems
  • Can install in the same console mounting holes
    as the Ray49
  • Measures 6.1" wide x 3.5" high (w/o bracket)
Specifications:
  • Weight: 1.7kg (3.74 lbs)
  • Water Integrity: Complies with IPX6 & IPX7
  • Operating Temp Range: -20 C to +60 C
  • Storage Temp Range: -25 C to +70 C
  • Humidity: up to 95%
  • Communications Port: NMEA0183 and
    NMEA2000
  • Antenna Port Impedance: 50 ohms typical
  • External Speaker Impedance: 4 ohms
  • Power: 12 VDC (Operational: Minimum 9V,
    Maximum 16V) Reverse polarity
  • and over voltage protected
Ray50    Cat. No. RM55404   Mfgr. No. E70243
LIST PRICE  $289.99
Some listed prices are manufacturer's list prices.  To see Waypoint's discount, click on the "Our Price" button.
Raymarine Ray60 VHF Radio
Packed with essential features like Dual Station Control & Intercom Capability.
The Ray60 is a full-sized VHF radio that is packed with essential communication features every boater needs. Add the original
RayMic accessory and you can use your Ray60 from 2 locations onboard the boat. The RayMic also enables intercom calling from
station to station.
Full-Sized, Full-Featured VHF Radio
The Ray60 VHF Radio has an oversized LCD display with intuitive menu and icons. It boasts a wide array of standard features
including NOAA weather alert, dual-watch, tri-watch, scanning, selective scanning, and much more.
The Ray60's fist-mic has built-in controls for channel up/down, hi/low power selection, and instant access to channel 16 or another
preferred channel. The fist-mic also features noise-cancelling technology so you'll always be heard loud and clear regardless of
engine or background noise. Ray60's fist-mic is also detachable and can be connected from the front or rear for installation
flexibility.
The Ray60 features standard NMEA2000 and NMEA0183 networking for simple connection to onboard systems and it integrates
seamlessly with Raymarine LightHouse II multifunction displays for advanced DSC functions.
Features:
  • Dual station and intercom capable with optional
    RayMic Accessory
  • Oversized LCD display for better viewing
  • Detachable fist-mic with built-in controls and mic
    relocation capability
  • Detachable gunmetal silver bezel and optional
    black bezel
  • Standard NMEA2000 and NMEA0183 networking
    for simple connection to onboard systems
  • Measures 7.8" wide x 3.9" high (w/o bracket)
Specifications:
  • Weight: 2.0kg (4.4 lbs)
  • Water Integrity: Complies with IPX6 & IPX7
  • Operating Temp Range: -20 C to +60 C
  • Storage Temp Range: -25 C to +70 C
  • Humidity: up to 95%
  • Communications Port: NMEA0183 and NMEA2000
  • Antenna Port Impedance: 50 ohms typical
  • External Speaker Impedance: 4 ohms
  • Power: 12 VDC (Operational: Minimum 9V,
    Maximum 16V) Reverse polarity and over
    voltage protected
Ray60    Cat. No. RM55405   Mfgr. No. E70245
LIST PRICE  $309.99
Raymarine Ray70 All-In-One VHF Radio w/AIS Receiver, Loudhailer & Intercom
Premium, All-In-One Communications Solution
The Ray70 starts with a powerful, 25W VHF radio with a detachable, noise-cancelling fist-mic and premium audio. Standard VHF
features include hi/lo power selection, dual-watch, tri-watch, NOAA Weather Alert, channel scanning, and more. Of course, Ray70
supports Class D Digital Selective Calling and integrates seamlessly with Raymarine multifunction displays thanks to its standard
NMEA2000 and NMEA0183 Networking.
Built-In GPS
Ray70 also features a built-in 72 channel GPS receiver ensuring you'll always have a position fix for emergency calls.
Built-In AIS
The Ray70's integral Automatic Identification System (AIS) receiver simplifies installation and delivers critical vessel traffic information
to compatible navigation displays.
Built-In Loudhailer
For communications on-deck and in noisy environments, the Ray70 also has a built-in 30W loudhailer output with listen-back capability.
This makes it simple to interact with crew on deck, on the dock or with nearby vessels. Simply connect the Ray70 to Raymarine's
optional weatherproof hailing horn. In inclement weather you can also use the Ray70's loudhailer to generate fog signals for vessels
underway or at anchor as required by the nautical rules-of-the-road.
Flexible Mounting Options
The Ray70 includes a trunnion mounting bracket kit and can also be flush-mounted using its convenient front-mount attachment
points. The gunmetal silver bezel matches Raymarine multifunction displays for a premium look. An optional black bezel kit is also
available.
Optional Second Station Kit
The Ray70 VHF Radio also supports the optional RayMic second station handset for remote locations. This gives you full-function VHF
and intercom capability from a second location onboard.
In addition to providing full access to all of the VHF capabilities, you'll also enjoy the convenience of station-to-station intercom calling
between the RayMic and main radio.
Features:

  • Built-in AIS Receiver and 72
    channel WAAS GPS
  • 30W Loudhailer output with
    listen-back and automatic fog
    signals
  • Dual-station and intercom
    capable with optional RayMic
    Accessory
  • Oversized LCD display for
    better viewing
  • Detachable fist-mic with built-in
    controls and mic relocation
    capability
  • Detachable gunmetal silver
    bezel and optional black bezel
  • Measures 7.8" wide x 3.9" high
    (w/o bracket)
Specifications:
  • Weight: 2.1kg (4.62 lbs)
  • Water Integrity: Complies with IPX6 &
    IPX7
  • Operating Temp Range: -20 C to +60 C
  • Storage Temp Range: -25 C to +70 C
  • Humidity: up to 95%
  • Communications Port: NMEA0183 and
    NMEA2000
  • Antenna Port Impedance: 50 ohms
    typical
  • External Speaker Impedance: 4 ohms
  • Power: 12 VDC (Operational:
    Minimum 9V, Maximum 16V) Reverse
    polarity
  • and over voltage protected
  • Handset Audio Output Power: 5W
    typical
  • Hailer Auto Output Power: 30W typical
  • Hailer Impedance: 4 ohms
  • GPS Sensitivity: High Sensitivity -
    acquisition down to - 166 dBm
  • AIS Class Type: AIS Receiver
Ray70    Cat. No. RM55406
Mfgr. No. E70251
LIST PRICE  $659.99
Some listed prices are manufacturer's list prices.  To see Waypoint's discount, click on the "Our Price" button.
Raymarine RayMic Second Station Handset for Ray60 & Ray70
RayMic Second Station Handset for Ray60 & Ray70

The RayMic features an oversized LCD display and high contrast text and graphics that are
visible day or night. This gives you full-function VHF and intercom capability from a second
location onboard.

In addition to providing full access to all of the VHF capabilities, you'll also enjoy the
convenience of station-to-station intercom calling between the RayMic and main radio.
Ray50    Cat. No. RM55407   Mfgr. No. A80289
LIST PRICE  $199.99
