GPS Chartplotters and Fishfinders
| Some listed prices are manufacturer's list prices. To see Waypoint's discount, click on the "Our Price" button. |
__________________________________________________________________
| If you don't see what you're looking for, please call or email us for pricing |
847-373-1841
 | |  |
________________________________________________________________
| NOTE: There is a 10% re-stocking charge for cancelled or returned merchandise |
| IMPORTANT NOTE FOR ORDERS FROM OUTSIDE OF THE U.S.: Shipping charges for orders outside of the Continental U.S. will be billed separately. International shipping is based on weight, size and destination country and are shipped via USPS Priority International Mail, unless requested otherwise or is prohibited by size or weight. |
| Multifunction Displays GPS Plotters & Fishfinders SmartPilot Systems VHF Radios & Hailers Instruments Satellite Weather & TV, AIS Radar Transducers & Access. SeaTalk, NMEA & HSB2 Cables |

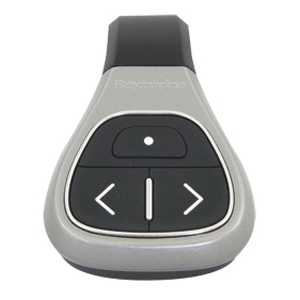

Raymarine RCU-3 Remote Control Unit for e7 Series
Steering Wheel Control
Stay in command of the e7 without letting go of the wheel. The optional RCU-3 Steering Wheel
Remote gives you simple access to frequently used functions while underway. Change range
scales, control your music, switch between apps, and even mark a waypoint, it's all possible
with the wireless RCU-3 remote.
Don't need the RCU-3 on your wheel? You can also attach the RCU-3 to the supplied lanyard
and transform the RCU-3 into a convenient handheld remote control for the e7. Bluetooth
wireless technology makes configuring the RCU-3 remote easy and gives wireless control of
the e7 from up to 15 feet from the display.
Stay in command of the e7 without letting go of the wheel. The optional RCU-3 Steering Wheel
Remote gives you simple access to frequently used functions while underway. Change range
scales, control your music, switch between apps, and even mark a waypoint, it's all possible
with the wireless RCU-3 remote.
Don't need the RCU-3 on your wheel? You can also attach the RCU-3 to the supplied lanyard
and transform the RCU-3 into a convenient handheld remote control for the e7. Bluetooth
wireless technology makes configuring the RCU-3 remote easy and gives wireless control of
the e7 from up to 15 feet from the display.
RCU Remote Control Cat. No. RM42384 Model No. E62351 PRICE $133.99
_____________________________________________________________

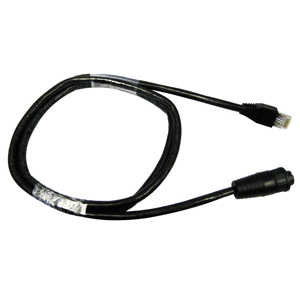

RayNet network cables are
for connecting the Digital
Sounder Module (DSM)
sonar, SR100 Sirius Weather
Receiver and additional
compatible Raymarine
Multifunction Displays.
for connecting the Digital
Sounder Module (DSM)
sonar, SR100 Sirius Weather
Receiver and additional
compatible Raymarine
Multifunction Displays.
|
Raymarine RayNet to RJ45 Male Network Cables
| Some listed prices are manufacturer's list prices. To see Waypoint's discount, click on the "Our Price" button. |
|
| PRICE |
_____________________________________________

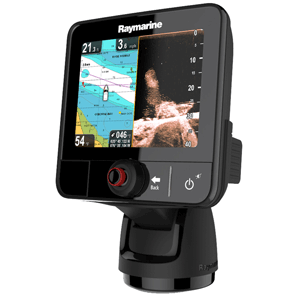

Raymarine Dragonfly 5.7" GPS/Fishfinder Combos
ClearPulse® CHIRP sonar is now within the reach of the inland and coastal salt water angler. Using Raymarine's exclusive where
they hide -- in both DownVision and conventional sonar simultaneously.
Dragonfly's intuitive display interface and simple Unicontroller is easy to use right out of the box. Built-in 50-channel GPS also
simplifies installation and its fast-acquisition position technology ensures added navigation confidence (with up to 3,000
waypoints, 150 routes and 15 tracks of up to 10,000 trackpoints).
The Raymarine Dragonfly combo sonar/GPS units feature a large 5.7" ultra-bright 1600 nit display for maximum visibility even in
direct sun. For added security, use the quick-release swivel bracket with an available Thule lock core.
Features:
In the Box:
they hide -- in both DownVision and conventional sonar simultaneously.
Dragonfly's intuitive display interface and simple Unicontroller is easy to use right out of the box. Built-in 50-channel GPS also
simplifies installation and its fast-acquisition position technology ensures added navigation confidence (with up to 3,000
waypoints, 150 routes and 15 tracks of up to 10,000 trackpoints).
The Raymarine Dragonfly combo sonar/GPS units feature a large 5.7" ultra-bright 1600 nit display for maximum visibility even in
direct sun. For added security, use the quick-release swivel bracket with an available Thule lock core.
Features:
- Large 5.7" 640x480 LCD with brilliant 1600 nit display is easy to read even in the brightest sunlight
- Raymarine's exclusive ClearPulse® CHIRP technology delivers unrivaled resolution for structure and fish detection
- Powerful two channel digital sonar engine simultaneously displays Down Vision and conventional sonar images
- True dual beam transom-mount transducer accurately reveals fish location (25 degree wide beam) and extremely detailed
views of structure (1.4 degree narrow fan beam), plus a high precision temperature sensor - High resolution Down Vision images up to 250 ft.
- Conventional sonar performance up to 600 ft.
- Lighting fast chart redraws with dedicated graphics co-processor
- Built-in high performance 50 channel GPS sensor with fast-acquisition technology
- Innovative design combines large display area and small mounting footprint
In the Box:
- Raymarine Dragonfly 5.7" Sonar/GPS Display
- Tilt/Swivel mounting bracket
- True Dual Beam Transom Mount Transducer assembly with mounting bracket and sealing cap
- User Guide
Specifications:
- Nominal supply voltage: 12V
- Operating Voltage Range: 10.2 - 16.6V
- Waterproofing standard: IPX6 and IPX7
- Display size: 5.7" (4:3 aspect ratio)
- Display resolution: VGA (640 x 480)
- Brightness: 1600 nits
- Color depth: 24 bit
- Chart Compatibility: Navionics
- Connections: Power/transducer
combined input - Frequency 200 kHz Sonar and 350 kHz
Down Vision - Dimensions: Height - 5.79" (147mm)
Wide x 5.79" (147mm) Tall x 1.93"
(49mm) Deep
Dragonfly Accessories
Raymarine Dragonfly Sun Cover
Dragonfly Flush Mount Kit
Raymarine Sun Cover for
the Dragonfly Sonar GPS
with Built-in Down Vision.
the Dragonfly Sonar GPS
with Built-in Down Vision.
Cat. No. RM48321
Model No. R70134
COST $15.99
Model No. R70134
COST $15.99
Flush Mount Kit
specifically for Raymarine
Dragonfly Units
specifically for Raymarine
Dragonfly Units
Cat. No. RM48754
Model No. A80223
COST $21.99
Model No. A80223
COST $21.99
Dragonfly Trolling Motor Bracket
Raymarine's Trolling Motor
Bracket is made
specifically for Raymarine's
Dragonfly Transducer.
Bracket is made
specifically for Raymarine's
Dragonfly Transducer.
Cat. No. RM49600
Model No. A80207
COST $99.99
Model No. A80207
COST $99.99
there is no waiting for charts to load. A fast processor makes panning, zooming, and exploring maps simple and fun. Dragonfly's all-weather,
high-definition color LCD display makes maps come to life and optical bonding protects the display from internal fogging.
Features:
high-definition color LCD display makes maps come to life and optical bonding protects the display from internal fogging.
Features:
- 5" All-weather, high-definition LED backlit display
- Optically bonded display for sharp color, wide viewing angles and no internal fogging
- Precision guidance using a 50-channel fast acquistion internal GPS sensor
- Simple to use - Power on and become a dragonfly expert in minutes
- Ball and socket tilt swivel mount lets you mount Dragonfly easlily on any surface
- Removable mounting ball is compatible with aftermarket ball and socket
- MicroSD memory card reader
- The 5M Includes US lakes, rivers, and coastal maps by C-MAP
- Compatible with optional Navionics and Raymarine Lighthouse™ format charts
- Internal storage for 3000 waypoints and 15 tracks.
- Use optional mciroSD memory cards for expanded storage
_____________________________________________________________

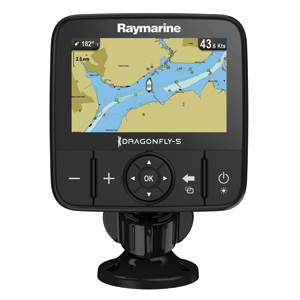

Raymarine Dragonfly 5M GPS
Dragonfly 5M GPS Cat. No. RM55519 Model No. E70295-US LIST $429.99
Dragonfly 5M Gold GPS Cat. No. RM55520 Model No. E70295-NAG LIST $469.99
Raymarine Dragonfly 5M GPS
Dragonfly® 4PRO and 5PRO combine GPS navigation with Raymarine's advanced dual-channel CHIRP sonar. Dragonfly PRO series will
change your underwater view and maximize your time fishing with Raymarine's wide spectrum CHIRP technology. Easily identify fish and
underwater objects with photo-like sonar images from the DownVision™ channel and target fish with the conventional CHIRP sonar channel. A
built-in 50-channel GPS delivers precision guidance and built-in Wi-Fi lets you stream live sonar right to your smartphone.
Superior Fishing Electronics Made Incredibly Simple
Change your underwater view and catch more fish with the Dragonfly PRO wide-spectrum CHIRP DownVision™ technology. Easily identify fish
and underwater objects with photo-like sonar images. Dragonfly's all-weather, high-definition color LCD display looks sharp from every angle.
Step up to a smarter species of sonar with Dragonfly.
The Dragonfly Difference
A leap into the future of sonar, Dragonfly sonars employ true wide spectrum CHIRP technology. With wide spectrum CHIRP more sonar signals
are transmitted into the water, allowing Dragonfly to interpret more detail, target more fish, and image structure with unmatched clarity.
Features:
- 4.3" or 5.0" All-weather, high-definition LED backlit display
- Optically bonded display for sharp color, wide viewing angles and no internal fogging
- Dual-channel sonar and wide-spectrum CHIRP DownVision™ sonar for photo-like images and a second CHIRP conventional sonar
channel for targeting fish - Wide-spectrum CHIRP technology delivers high-speed tracking and better deep water resolution
- Stream live sonar data to your smartphone with Raymarine's Wi-Fish™ mobile app
- With the Wi-Fish™ you can rewind, save and share the day's catch with friends on your favorite social networks
- Simple to use - Power on and become a Dragonfly expert in minutes
- Ball and socket tilt swivel mount lets you mount Dragonfly easlily on any surface
- Removable mounting ball is compatible with aftermarket ball and socket mounting systems for more mounting options
- MicroSD memory card reader for saving sonar screen shots
- 4PRO & 5PRO include US lakes, rivers and coastal maps by C-MAP
- Compatible with optional Navionics and Raymarine Lighthouse™ format charts
- Includes transom mount CHIRP transducer with temperature sensor
|
| SEE OUR PRICE |

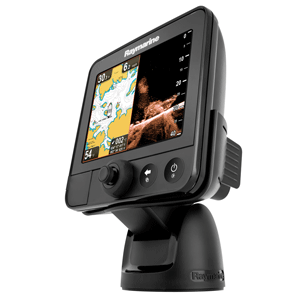

Raymarine Dragonfly 6 5.7" Combo GPS/Fishfinder
With Raymarine's affordable, high-performance Dragonfly series of combination sonar/GPS, the power and crisp detail of ClearPulse® CHIRP
sonar is now within the reach of the inland and coastal salt water angler. Using Raymarine's exclusive ClearPulse® technology and a true 2-
channel transducer, users see dramatically revealing images of fish and the structures where they hide--in both DownVision and
conventional sonar simultaneously.
Dragonfly's intuitive display interface and simple Unicontroller is easy to use right out of the box. Built-in 50-channel GPS also simplifies
installation and its fast-acquisition position technology ensures added navigation confidence (with up to 3,000 waypoints, 150 routes and 15
tracks of up to 10,000 trackpoints).
The Raymarine Dragonfly combo sonar/GPS units feature a large 5.7" ultra-bright 1600 nit display for maximum visibility even in direct sun.
For added security, use the quick-release swivel bracket with an available Thule lock core.
Features:
sonar is now within the reach of the inland and coastal salt water angler. Using Raymarine's exclusive ClearPulse® technology and a true 2-
channel transducer, users see dramatically revealing images of fish and the structures where they hide--in both DownVision and
conventional sonar simultaneously.
Dragonfly's intuitive display interface and simple Unicontroller is easy to use right out of the box. Built-in 50-channel GPS also simplifies
installation and its fast-acquisition position technology ensures added navigation confidence (with up to 3,000 waypoints, 150 routes and 15
tracks of up to 10,000 trackpoints).
The Raymarine Dragonfly combo sonar/GPS units feature a large 5.7" ultra-bright 1600 nit display for maximum visibility even in direct sun.
For added security, use the quick-release swivel bracket with an available Thule lock core.
Features:
- Large 5.7" 640x480 LCD with brilliant 1600 nit display is easy to read even in the brightest sunlight
- Raymarine's exclusive ClearPulse® CHIRP technology delivers unrivaled resolution for structure and fish detection
- Powerful two channel digital sonar engine simultaneously displays Down Vision and conventional sonar images
- Included True dual beam transom-mount transducer accurately reveals fish location (25 degree wide beam) and extremely detailed
views of structure (1.4 degree narrow fan beam), plus a high precision temperature sensor - High resolution Down Vision images up to 250 ft.
- Conventional sonar performance up to 600 ft.
- Lightning fast chart redraws with dedicated graphics co-processor
- Uses either Navionics Gold or C-Map Charts
- Built-in high performance 50 channel GPS sensor with fast-acquisition technology
- Innovative design combines large display area and small mounting footprint.
|
| SEE OUR PRICE |
With Raymarine's affordable, high-performance Dragonfly series of combination sonar/GPS, the power and crisp detail of ClearPulse® CHIRP
channel transducer, users see dramatically revealing images of fish and the structures where they hide--in both DownVision and
conventional sonar simultaneously.
Dragonfly's intuitive display interface and simple Unicontroller is easy to use right out of the box. Built-in 50-channel GPS also simplifies
installation and its fast-acquisition position technology ensures added navigation confidence (with up to 3,000 waypoints, 150 routes and 15
tracks of up to 10,000 trackpoints).

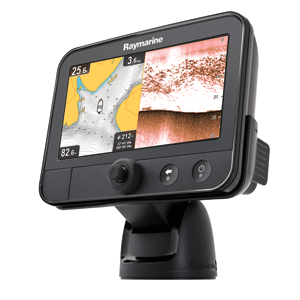

The Raymarine Dragonfly combo sonar/GPS units feature a large 7" ultra-bright 1600 nit display for maximum visibility even in direct sun. For
added security, use the quick-release swivel bracket with an available Thule lock core.
Features:
channel transducer, users see dramatically revealing images of fish and the structures where they hide--in both DownVision and
conventional sonar simultaneously.
Dragonfly's intuitive display interface and simple Unicontroller is easy to use right out of the box. Built-in 50-channel GPS also simplifies
installation and its fast-acquisition position technology ensures added navigation confidence (with up to 3,000 waypoints, 150 routes and 15
tracks of up to 10,000 trackpoints).
The Raymarine Dragonfly combo sonar/GPS units feature a large 7" ultra-bright 1600 nit display for maximum visibility even in direct sun. For
added security, use the quick-release swivel bracket with an available Thule lock core.
Features:
- Large 7" 800x480 WVGA LCD with brilliant 1600 nit display is easy to read even in the brightest sunlight
- Raymarine's exclusive ClearPulse® CHIRP technology delivers unrivaled resolution for structure and fish detection
- Powerful two channel digital sonar engine simultaneously displays Down Vision and conventional sonar images
- Included True dual beam transom-mount transducer accurately reveals fish location (25 degree wide beam) and extremely detailed
views of structure (1.4 degree narrow fan beam), plus a high precision temperature sensor (not included in model E70230) - High resolution Down Vision images up to 250 ft.
- Conventional sonar performance up to 600 ft.
- Includes either Navionics Gold or C-Map U.S. charting (except #E70230 or #E70231)
- Lightning fast chart redraws with dedicated graphics co-processor
- Built-in high performance 50 channel GPS sensor with fast-acquisition technology
- Innovative design combines large display area and small mounting footprint
Raymarine Dragonfly 4DV, 4VDS & 5VDS w/CHIRP DownVision™ Sonar
Change your underwater view and catch more fish with the Dragonfly 4DV, 4DVS or 5DVS wide-spectrum CHIRP DownVision technology. Easily
every angle and optical bonding ensures the display will never fog up internally. Step up to CHIRP and a smarter species of sonar with Dragonfly
4DV, 4DVS & 5DVS.
The Dragonfly 4DVS and 5DVS have dual-channel sonar.
The Dragonfly Difference
A leap into the future of sonar, Dragonfly sonars employ true wide spectrum CHIRP technology. With wide spectrum CHIRP more sonar signals
are transmitted into the water, allowing Dragonfly to interpret more detail, target more fish, and image structure with unmatched clarity.
CHIRP DownVision™ - Simply The Best Imaging Sonar
CHIRP DownVision™ will change your underwater view with incredibly clear, photo-like sonar images. Dragonfly's CHIRP DownVision™ surpasses
ordinary imaging sonars with superior deep water performance to 600ft (180m) and reliable high speed bottom tracking.
A Better View
Each Dragonfly is engineered with optical bonding LCD display technology. Once only available on high end marine displays, Dragonfly's all
weather optically bonded displays deliver brighter colors, sharper contrast, and are guaranteed to never fog up.
Features:
every angle and optical bonding ensures the display will never fog up internally. Step up to CHIRP and a smarter species of sonar with Dragonfly
4DV, 4DVS & 5DVS.
The Dragonfly 4DVS and 5DVS have dual-channel sonar.
The Dragonfly Difference
A leap into the future of sonar, Dragonfly sonars employ true wide spectrum CHIRP technology. With wide spectrum CHIRP more sonar signals
are transmitted into the water, allowing Dragonfly to interpret more detail, target more fish, and image structure with unmatched clarity.
CHIRP DownVision™ - Simply The Best Imaging Sonar
CHIRP DownVision™ will change your underwater view with incredibly clear, photo-like sonar images. Dragonfly's CHIRP DownVision™ surpasses
ordinary imaging sonars with superior deep water performance to 600ft (180m) and reliable high speed bottom tracking.
A Better View
Each Dragonfly is engineered with optical bonding LCD display technology. Once only available on high end marine displays, Dragonfly's all
weather optically bonded displays deliver brighter colors, sharper contrast, and are guaranteed to never fog up.
Features:
- 4.3" or 5.0" All-weather, high-definition LED backlit display internal fogging
- Optically bonded display for sharp color, wide viewing angles, and no internal fogging
- Dual-channel sonar - Wide-spectrum CHIRP DownVision™ sonar for photo-like images and a second CHIRP conventional
- Award-winning Wide-spectrum CHIRP technology delivers high-speed tracking and better deep water resolution
- Simple to use - Power on and become a Dragonfly expert in minutes
- Ball and socket tilt swivel mount lets you mount Dragonfly easily on any surface
- Removable mounting ball is compatible with aftermarket ball and socket
- mounting systems for more mounting options
- MicroSD memory card reader for saving sonar screen shots
- Includes transom mount CHIRP transducer with temperature sensor
| SEE OUR PRICE |
____________________________________________________________
| Some listed prices are manufacturer's list prices. To see Waypoint's discount, click on the "Our Price" button. |
|
Raymarine Wi-Fish™ w/Wi-Fi CHIRP, DownVision™ Sonar & T/M Transducer
Transform your smartphone into a powerful CHIRP DownVision™ sonar with the Wi-Fish™ wireless sonar. Simply download the free Wi-Fish app
also lets you rewind and save sonar imagery for sharing with friends online instantly. iOS or Android smartphone or tablet compatible.
Connect & Share Wirelessly
The Wi-Fish mobile app puts Dragonfly sonar vision right in the palm of your hand, plus you can rewind and capture sonar images to share online
with friends.
Features:
- Black box Wi-Fi CHIRP DownVision™ sonar module
- Connect with the free Wi-Fish™ mobile app for iOS and Android devices
- Return to the location of favorite fishing spots using the Wi-Fish augmented reality mode and your phone's GPS
- Pause, zoom and rewind the sonar right on your phone
- Save your favorite catch and share with friends online
- Award winning wide-spectrum CHIRP DownVision™ sonar technology for photo-like images, high-speed tracking, and better deep water
resolution - Ball and socket tilt swivel mount lets you mount Wi-Fish™ easily on any surface
- Includes transom mount CHIRP transducer with temperature sensor
Raymarine Wi-Fish™ Cat. No. RM55528 Model No. E70290 LIST $219.99
| DISCONTINUED |
