MFD System Equipment & Accessories
- A crisp, high contrast 64 x 127 dot matrix display
- Backlit display and keypad
- Up to eight user definable data pages
- Single, dual or four line data displays
- Graphical CDI (Course Deviation Indicator) display
- Keylock security
- Rechargeable via SeaTalk network
- Up to 32 feet (10 meters) wireless operating range from the
base station - Signal strength indicator
- Pre-registered each unit leaves the factory already
registered to the base station
________________________________________________________
Cat. No. RM16577 Model No. E15023 LIST $565.00
| Turn your multi-function display into a powerful onboard observation system with Raymarine Cameras |
CAM 50
CAM 100
Network, Cables and Accessories
System Components
__________________________________________________________________
____________________________________________________________________
|
| PRICE |
| If you don't see what you're looking for, please call or email us for pricing |
847-373-1841
____________________________________________________________________
 | |  |
_____________________________________________________________________
____________________________________________________________________

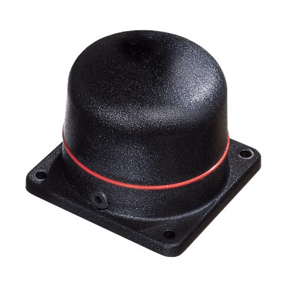

Raymarine Fluxgate Compass Module
| Cat. No. RM14937 Model No. M81190 LIST $220.00 |
- Replacement fluxgate compass module for
Raymarine autopilots and instruments. - Originally supplied with all autopilot core
packs, compass instruments, SportPilot, and
SmartPilot systems. - Includes 30 foot connection cable and
stainless, non-magnetic mount
|
| Cat. No. RM16530 Model No. E55061 LIST $500.00 |

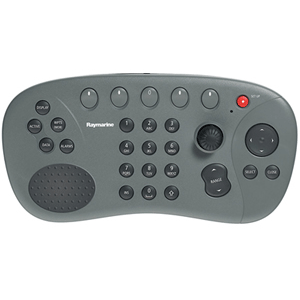

E-Series Full Function Remote Keyboard
E-Series Full Function Remote Keyboard with SeaTalk 2
Connection. Control your E-Series system remotely with the
Full Function SeaTalk2 Remote Keyboard. The E-Series
Remote Keyboard allows full control of all E-Series functions.
The keyboard has the same familiar Twist n' Click, softkeys,
and cursor controls as the E80 and E120 displays.
Additionally, a full 12 key alphanumeric keypad is included to
make entering waypoints, routes, and names fast and easy.
This rugged, waterproof keyboard includes all of the
hardware to mount it inside or outside. Convenient bracket
or flush mounting hardware is included.
Connection. Control your E-Series system remotely with the
Full Function SeaTalk2 Remote Keyboard. The E-Series
Remote Keyboard allows full control of all E-Series functions.
The keyboard has the same familiar Twist n' Click, softkeys,
and cursor controls as the E80 and E120 displays.
Additionally, a full 12 key alphanumeric keypad is included to
make entering waypoints, routes, and names fast and easy.
This rugged, waterproof keyboard includes all of the
hardware to mount it inside or outside. Convenient bracket
or flush mounting hardware is included.
| Multifunction Displays GPS Plotters & Fishfinders SmartPilot Systems VHF Radios & Hailers Instruments Satellite Weather & TV, AIS Radar Transducers & Access. SeaTalk, NMEA & HSB2 Cables |
| IMPORTANT NOTE FOR ORDERS FROM OUTSIDE OF THE U.S.: Shipping charges for orders outside of the Continental U.S. will be billed separately. International shipping is based on weight, size and destination country and are shipped via USPS Priority International Mail, unless requested otherwise or is prohibited by size or weight. |
|
__________________________________________________________________
__________________________________________________________________

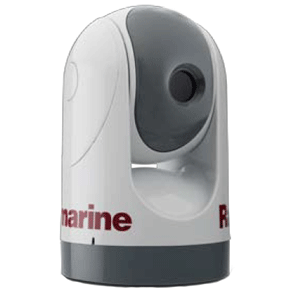

Raymarine T303 Thermal Camera, 30Hz (US Only)
Raymarine T403 Thermal Camera w/Low Light Video (US Only)
T303 Thermal Night Vision Camera is a powerful tool
for navigation safety both day and night. The
camera's thermal images can be displayed in either
aids or hazards identified on the chart display can be
visually sighted and confirmed even in total darkness.
The integrated pan-tilt-zoom control allows you to
direct the camera towards radar and AIS targets,
improving overall situational awareness.
for navigation safety both day and night. The
camera's thermal images can be displayed in either
aids or hazards identified on the chart display can be
visually sighted and confirmed even in total darkness.
The integrated pan-tilt-zoom control allows you to
direct the camera towards radar and AIS targets,
improving overall situational awareness.
In addition to its thermal imager, the T403 is also equipped
The T403 Thermal Night Vision Camera is a powerful tool
for navigation safety both day and night. The camera's
thermal images can be displayed in either full screen, or in
a window alongside other navigation data like electronic
charting and radar. Navigation aids or hazards identified on
the chart display can be visually sighted and confirmed
even in total darkness. The integrated pan-tilt-zoom control
allows you to direct the camera towards radar and AIS
targets, improving overall situational awareness.
The T403 Thermal Night Vision Camera is a powerful tool
for navigation safety both day and night. The camera's
thermal images can be displayed in either full screen, or in
a window alongside other navigation data like electronic
charting and radar. Navigation aids or hazards identified on
the chart display can be visually sighted and confirmed
even in total darkness. The integrated pan-tilt-zoom control
allows you to direct the camera towards radar and AIS
targets, improving overall situational awareness.
Cat. No. RM40055 Model No. E32145 LIST $8,395.00
Cat. No. RM40059 Model No. E32128 LIST $13,795.00
The T303 camera integrates with
Multifunction Navigation displays and
system. Using SeaTalk hs networking,
the camera's pan, tilt and zoom screen
(E-Series Widescreen) or using the
MFD's keypad and rotary controls
(E-Series Widescreen or G-Series.)
Multifunction Navigation displays and
system. Using SeaTalk hs networking,
the camera's pan, tilt and zoom screen
(E-Series Widescreen) or using the
MFD's keypad and rotary controls
(E-Series Widescreen or G-Series.)
uninterrupted horizon-to-horizon viewing.
- Automatic window heater keep thermal
optic free of ice in cold temperatures - "Ball-up" or "Ball-down" mounting
- Surveillance mode automatically scans in
front of the vessel or in a designated zone. - Optional SeaTalkhs Joystick Control Units
TheT403 integrates seamlessly with
TheT403 integrates seamlessly with
E-Series Widescreen G-Series
Command Center navigation system.
Using SeaTalk hs networking, the
camera's pan, tilt and zoom screen
(E-Series Widescreen) or using the
MFD's keypad and rotary controls
(E-Series Widescreen or G-Series.)
TheT403 integrates seamlessly with
E-Series Widescreen G-Series
Command Center navigation system.
Using SeaTalk hs networking, the
camera's pan, tilt and zoom screen
(E-Series Widescreen) or using the
MFD's keypad and rotary controls
(E-Series Widescreen or G-Series.)
- High resolution video camera with daylight
and extreme lowlight capability - 360x continuous panning and +/- 90x tilt for
uninterrupted horizon-to-horizon viewing. - Automatic window heater keep thermal optic
free of ice in cold temperatures - "Ball-up" or "Ball-down" mounting
- Surveillance mode automatically scans in
front of the vessel or in a designated zone. - Optional SeaTalkhs Joystick Control Units
| Raymarine T203 and T253 Fixed Thermal Night Vision Cameras - NTSC - 30Hz - US & Canada Only |
or mast.
The T203 320 x 240 resolution model features a wide-angle 13mm lens and 2x digital zoom.
The high resolution T253 640 x 480 version offers enhanced long-range performance using a 25mm lens and 4x digital zoom capability.
All T200 Series thermal cameras feature multiple user-selectable colour palettes and white-hot/black-hot selection. Best of all, the camera can be controlled entirely from the IR
Camera application on Raymarine e-Series or c-Series Multifunction Display. Both cameras are simple to install thanks to camera Power-Over-Ethernet (POE) and analog video
output.
The T203 320 x 240 resolution model features a wide-angle 13mm lens and 2x digital zoom.
The high resolution T253 640 x 480 version offers enhanced long-range performance using a 25mm lens and 4x digital zoom capability.
All T200 Series thermal cameras feature multiple user-selectable colour palettes and white-hot/black-hot selection. Best of all, the camera can be controlled entirely from the IR
Camera application on Raymarine e-Series or c-Series Multifunction Display. Both cameras are simple to install thanks to camera Power-Over-Ethernet (POE) and analog video
output.
Specifications:
- Thermal Video: Yes
- Lowlight Video: No
- Video Resolution: T203 is 320 x 240,
- Video Output: NTSC
- Digital Zoom: T203: 2x discrete zoom 1x-2x
- Focal Length: T203: 13mm
- Lightweight, compact enclosure mounts easily on any vessel
- Superior FLIR Thermal Imaging technology
- User-selectable colour palettes
- Digital zoom
- Composite video output
- Controllable from Raymarine e and c-Series Multifunction
Displays plus gS Series
__________________________________________________________________
Cat. No. RM50027 Model No. E70110
LIST $3,595.00
LIST $3,595.00
Cat. No. RM50028 Model No. E70120
LIST $4,595.00
LIST $4,595.00
See At Night
The Raymarine Thermal Marine Scope gives every boater the power to see clearly
in total darkness. The Thermal Marine Scope uses the same proven FLIR thermal
imaging technology as Raymarine's premium T-Series fixed mount thermal night
vision systems, but they are smaller, portable, and more affordable.
The Thermal Marine Scope makes pictures from heat, not light, to help you see
landmarks, bridge abutments, and other vessels clearly in all light conditions from
daylight to complete darkness.
Thermal night vision improves your ability to see rocks, buoys, floating debris, and
even helps you find people in the water when just a few minutes can mean the
difference between life and death.
The Raymarine Thermal Marine Scope gives every boater the power to see clearly
in total darkness. The Thermal Marine Scope uses the same proven FLIR thermal
imaging technology as Raymarine's premium T-Series fixed mount thermal night
vision systems, but they are smaller, portable, and more affordable.
The Thermal Marine Scope makes pictures from heat, not light, to help you see
landmarks, bridge abutments, and other vessels clearly in all light conditions from
daylight to complete darkness.
Thermal night vision improves your ability to see rocks, buoys, floating debris, and
even helps you find people in the water when just a few minutes can mean the
difference between life and death.
- IP-67 Rated
- Resolution 320 x 240
- 2x Digital Zoom
- Simple Three-Button Operation
- LED TaskLight
- Long-Life Rechargeable Li-Ion Battery
Raymarine TH32 Scope
Cat. No. RM42601 Model No. E70033 LIST $2,999.00
Cat. No. RM42601 Model No. E70033 LIST $2,999.00
3M Cable connect DSM30 or
DSM300 to the new a, c, e series
DSM300 to the new a, c, e series
| Raymarine RayNet (F) to STHS (M) 3M Cable |
RayNet to STHS Cable
Cat. No. RM51291 Model No. A80276
COST $70.99
Cat. No. RM51291 Model No. A80276
COST $70.99
WIRELESS SmartController
________________________________________________________
| CP100 CHIRP DownVision™ Sonar Module |
Two sonars in one, the CP100 features Raymarine's CHIRP fish targeting as well
RayNet (Ethernet) network enabling the CP100 to be accessed from any
Raymarine network display.
Unlike conventional imaging sonars that transmit on a single frequency with
each pulse, the CP100's DownVision™ sonar uses CHIRP technology to
transmit across a wide spectrum of sonar frequencies with each pulse - the
result is much higher-resolution, life-like sonar images.
CP100's fish targeting channel features amazing resolution enabling it to easily
separate individual baitfish in a school, and distinguish the bait from predator
species. Best of all, the CHIRP fish targeting can be viewed simultaneously with
CHIRP DownVision™ for the ultimate view of what is underneath the water.
The ultra-compact CP100 CHIRP DownVision™ Sonar Module is compatible with
all Raymarine a-Series, c-Series, e-Series and gS-Series multifunction displays.
The CP100 is available bundled with the CPT-100 transom mount transducer.
The CP100 Sonar module only (no transducer included) can be paired with
optional plastic or bronze thru hull transducers.
RayNet (Ethernet) network enabling the CP100 to be accessed from any
Raymarine network display.
Unlike conventional imaging sonars that transmit on a single frequency with
each pulse, the CP100's DownVision™ sonar uses CHIRP technology to
transmit across a wide spectrum of sonar frequencies with each pulse - the
result is much higher-resolution, life-like sonar images.
CP100's fish targeting channel features amazing resolution enabling it to easily
separate individual baitfish in a school, and distinguish the bait from predator
species. Best of all, the CHIRP fish targeting can be viewed simultaneously with
CHIRP DownVision™ for the ultimate view of what is underneath the water.
The ultra-compact CP100 CHIRP DownVision™ Sonar Module is compatible with
all Raymarine a-Series, c-Series, e-Series and gS-Series multifunction displays.
The CP100 is available bundled with the CPT-100 transom mount transducer.
The CP100 Sonar module only (no transducer included) can be paired with
optional plastic or bronze thru hull transducers.
Features:
- Photo-like imagery of bottom structure using CHIRP
DownVision™ - CHIRP powered dual channel sonar; view high resolution
DownVision™ structure imagery and target fish with CHIRP
sonar simultaneously - Perfectly matched transom mount and through hull CHIRP
transducers available - Fast response temperature sensor built into the transducer
- Maximum depth 600 feet for both channels
- Simple RayNet Ethernet connection to Raymarine a, c, e and gS
Series MFDs - CPT-100 transom mount transducer included in bundled version
- Optional RayNet network cable required to complete installation:
Raymarine CP100 Sonar w/CPT-100 Transducer
Cat. No. RM49336 Model No. E70206
LIST $609.00
Cat. No. RM49336 Model No. E70206
LIST $609.00
__________________________________________________________________
Wide Adapter
Classic Adapter
Raymarine C120/C120W/E120/E120W to c9X/c12X/e9X/e12X Adapter Kits
Upgrade or Refit to New c or e-Series
If you are looking to refit your boat or upgrade your current Raymarine displays to the new e or c Series displays, we can help make life easier for you!
Upgrading is simple - using optional easy-fit bezels:
If you are looking to refit your boat or upgrade your current Raymarine displays to the new e or c Series displays, we can help make life easier for you!
Upgrading is simple - using optional easy-fit bezels:
- Remove your old C120 or E120, Classic or Wide Raymarine display from the dash
- Screw the new mounting plate (supplied pre-drilled) to the old fixing holes.
- Remove the outer bezel from your new e or c Series display.
- Fit the NEW display into the mounting plate and screw down.
- Clip the new easy-fit bezel on to the NEW display.
|
These cables are used to connect Raymarine e and c series network
components. They are available in lengths of 2 meters to 20 meters.
components. They are available in lengths of 2 meters to 20 meters.
|
Raymarine Raynet Component to Raynet Component Cables
_______________________________________________________
CP570 Professional CHIRP™ Sonar Module
High-Performance Sonar Module For Professional & Tournament Fishing
CHIRP Sonar Module
Engineered for serious anglers, the CP570 sonar module bring best-in-class target separation and high resolution CHIRP sonar imagery to Raymarine
multifunction displays. Using a wide spectrum of frequencies and greater sensitivity the CP570's advanced CHIRP transceiver can see through dense
schools of baitfish, identify thermoclines, and simultaneously target desired game fish.
Serious Offshore Sonar
Superior target definition and enhanced sensitivity using Raymarine's exclusive wide spectrum CHIRP sonar technology. Identify bait fish, target fish and
track the sea floor down to 10,000' (3,000M) with two adjustable CHIRP sonar channels. Hunt for fish in different parts of the water column with the
CP570's two fully independent 2kW sonar channels.
Stunning Detail & Clarity
With 10 times the resolution of ordinary sonars the CP570 delivers sharper, more defined fish targets and automatically filter out unwanted noise so you
never miss the action below. TruZoom™ magnification mode reveals extra target detail without any loss of resolution.
The CP570's ultra-fast ping rate processing delivers accurate bottom tracking in extreme offshore conditions.
Easy To Customize
Choose optional low, medium, and high CHIRP frequency transducers in standard or wide-beam to match your fishing preferences. The CP570
automatically recognizes connected transducers and adjust sonar parameters for optimized performance. View and control each CHIRP channel
independently and create your own combination of full or split screen sonar windows on Raymarine's LightHouse II powered multifunction displays.
Features:
sonar
Sonar Performance:
High-Performance Sonar Module For Professional & Tournament Fishing
CHIRP Sonar Module
Engineered for serious anglers, the CP570 sonar module bring best-in-class target separation and high resolution CHIRP sonar imagery to Raymarine
multifunction displays. Using a wide spectrum of frequencies and greater sensitivity the CP570's advanced CHIRP transceiver can see through dense
schools of baitfish, identify thermoclines, and simultaneously target desired game fish.
Serious Offshore Sonar
Superior target definition and enhanced sensitivity using Raymarine's exclusive wide spectrum CHIRP sonar technology. Identify bait fish, target fish and
track the sea floor down to 10,000' (3,000M) with two adjustable CHIRP sonar channels. Hunt for fish in different parts of the water column with the
CP570's two fully independent 2kW sonar channels.
Stunning Detail & Clarity
With 10 times the resolution of ordinary sonars the CP570 delivers sharper, more defined fish targets and automatically filter out unwanted noise so you
never miss the action below. TruZoom™ magnification mode reveals extra target detail without any loss of resolution.
The CP570's ultra-fast ping rate processing delivers accurate bottom tracking in extreme offshore conditions.
Easy To Customize
Choose optional low, medium, and high CHIRP frequency transducers in standard or wide-beam to match your fishing preferences. The CP570
automatically recognizes connected transducers and adjust sonar parameters for optimized performance. View and control each CHIRP channel
independently and create your own combination of full or split screen sonar windows on Raymarine's LightHouse II powered multifunction displays.
Features:
sonar
- Automatic transducer identification with Airmar Xducer ID
- Airmar Wide Beam transducer compatible
- Compatibility:aSeries | cSeries | eSeries | gS Series
- Nominal Supply Voltage:12/24 V DC
- Power Consumption: 30.6W (Maximum)
- Connections:Power connection | Network connection (RayNet connector) 10/100 Mb/s | Transducer connection
Sonar Performance:
- Sonar Type: Wide Spectrum CHIRP
- Power:Max 4kW output using 2 independent CHIRP channels
- Frequency & Channels:Dual independent CHIRP channels from 25 to 250kHz
- Depth Range:10,000' (3,000M)
| CP570 Professional CHIRP™ Sonar Module |
Raymarine CP570 Sonar Cat. No. 55527 Mfgr. No. E70258 List $1,919.00 See Our Price
| CP470 CHIRP™ Sonar Module |
CP470's advanced CHIRP transceiver can see through dense schools of baitfish, identify thermoclines, and simultaneously target desired game fish.
Serious Offshore Sonar:
Superior target definition and enhanced sensitivity using Raymarine's exclusive wide spectrum CHIRP sonar technology. .Rated for offshore use and rough
conditions, the CP470 intelligently filters out unwanted noise while producing high resolution fish targets and reliable bottom tracking. Target fish, identify bait,
and track the sea floor down to 10,000' (3,000M) with two adjustable CHIRP sonar channels.
Stunning Detail & Clarity
With 10 times the resolution of ordinary sonars the CP470 delivers sharper, more defined fish targets and automatically filter out unwanted noise so you never
miss the action below. TruZoom™ magnification mode reveals extra target detail without any loss of resolution.
Easy To Customise
Choose optional low, medium, and high CHIRP frequency transducers in standard or wide-beam to match your fishing preferences. The CP470 automatically
recognizes connected transducers and adjust sonar parameters for optimized performance. View and control each CHIRP channel independently and create
your own combination of full or split screen sonar windows on Raymarine's LightHouse II powered multifunction displays.
Features:
Sonar Performance:
Serious Offshore Sonar:
Superior target definition and enhanced sensitivity using Raymarine's exclusive wide spectrum CHIRP sonar technology. .Rated for offshore use and rough
conditions, the CP470 intelligently filters out unwanted noise while producing high resolution fish targets and reliable bottom tracking. Target fish, identify bait,
and track the sea floor down to 10,000' (3,000M) with two adjustable CHIRP sonar channels.
Stunning Detail & Clarity
With 10 times the resolution of ordinary sonars the CP470 delivers sharper, more defined fish targets and automatically filter out unwanted noise so you never
miss the action below. TruZoom™ magnification mode reveals extra target detail without any loss of resolution.
Easy To Customise
Choose optional low, medium, and high CHIRP frequency transducers in standard or wide-beam to match your fishing preferences. The CP470 automatically
recognizes connected transducers and adjust sonar parameters for optimized performance. View and control each CHIRP channel independently and create
your own combination of full or split screen sonar windows on Raymarine's LightHouse II powered multifunction displays.
Features:
- TruZoom™TruZoom™ provides magnified views of fish targets, bottom structure, and baitfish without loss of resolution as seen by traditional sonar
- Automatic transducer identification with Airmar Xducer ID
- Airmar Wide Beam transducer compatible
- Waterproofing Standard:IPX6 waterproof rugged aluminum enclosure
- Compatibility:aSeries | cSeries | eSeries | gS Series
- Nominal Supply Voltage:12/24 V DC
- Power Consumption: 30.6W (Maximum)
- Connections:Power connection | Network connection (RayNet connector) 10/100 Mb/s | Transducer connection
Sonar Performance:
- Sonar Type: Wide Spectrum CHIRP
- Power:1kW / 2kW depending on transducer
- Frequency & Channels:Dual independent CHIRP channels from 25 to 250kHz
- Depth Range:10,000' (3,000M)
_______________________________________________________
Raymarine CP470 Sonar Cat. No. RM55526 Mfgr. No. E70298 List $1,209.00 See Our Price
Raymarine RCU-3 Remote Control Unit for e7 Series
Remote gives you simple access to frequently used functions while underway. Change range
Stay in command of the e7 without letting go of the wheel. The optional RCU-3 Steering Wheel
scales, control your music, switch between apps, and even mark a waypoint, it's all possible with
the wireless RCU-3 remote.
Don't need the RCU-3 on your wheel? You can also attach the RCU-3 to the supplied lanyard
and transform the RCU-3 into a convenient handheld remote control for the e7. Bluetooth
wireless technology makes configuring the RCU-3 remote easy and gives wireless control of the
e7 from up to 15 feet from the display.
RCU Remote Control Cat. No. RM42384 Model No. E62351 PRICE $133.99
_______________________________________________________
Trunnion Bracket Mounting Kit for e165
Cat. No. RM49102 Model No. A80176 PRICE $129.99
Cat. No. RM49102 Model No. A80176 PRICE $129.99
